Portables rattling when rewinding to the beginning

Recorders, Players, etc.
#1

Hi,

On occasion we find all model portables not stopping when rewinding to the beginning. Normally when reading the TOC the player will slow down and the slip/gear will nicely stop once the tape reaches it beginnings.

When this problem occurs, the player will not stop (although it slows down) and a rattling noise will come from the mechanism. Sometimes it stops, sometimes you would have to press stop.

Anyone found a solution for this?
We sometimes see that a little longer belt (65-67)mm alleviates the problem.

#2

Here is an example on a DCC134

#3

Ralf,

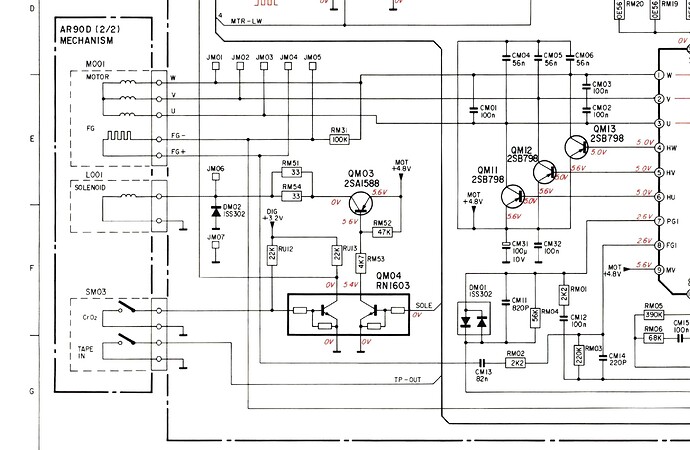

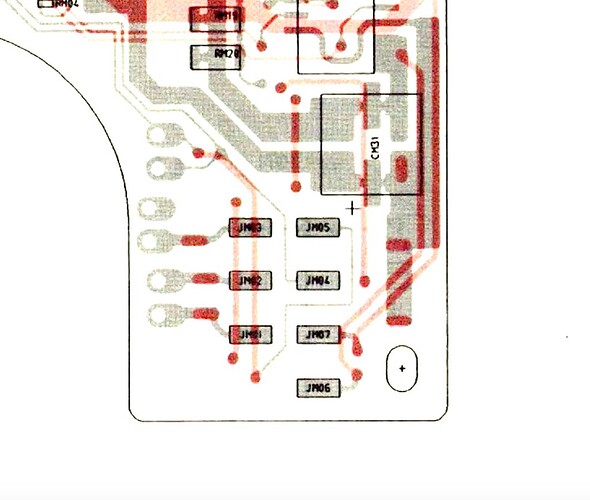

I should remove the pcb and put the player in rewinding mode with the solenoid. Than directly power the motor and see what the problem is. I think there should be something with the solenoid/cam gear/trigger lever. Or some old grease on the mechanics that keeps a gear out of position.

1
11496×1266 215 KB
2
21988×1298 334 KB

1 Like
#4

Have you seen this problem before?

1 Like
#5

No I did not seen it, but If I have to guess its something in the gears.

1 Like
#6

I do have another way around with the 170… with some tapes the recorder switches of to STOP before reaching the end…
