DCC170 with strange intermittent problem

Hi,
Another strange problem. This DCC170 plays very well, new belt fitted, except it is very sensitive to pressure on the lid.
See it in action in this clip:

When slight pressure is applied, the tape stops. And sometimes the player even shuts down.
But this happens not all the time.

I have already overruled the tape sensor in the lid. The strange thing is, that when I disconnect (unscrew) the lid (with the buttons and display on it) from the tape-holding mechanism (the metal that physically holds the tape), so that the lid is sort of ‘hanging loose’ and the hinge is loose too, then the problem is completely gone.
When I reassemble everything, it resurfaces again. I tested this a few times now.
I am stuck at the moment. Anyone any ideas?

-update-
Actually I have two DCC170 (of the same owner) with exactly this same problem.

Hi,
The board inside the lid is the problem. I have seen it a couple of times and replaced the boards (that holds the stop button) with a donor.

It could also be a defect stop button.

Ralf

Ok, I fixed it.
It was the white tape sensor in the lid after all.
Although I already overruled that sensor by putting tape over it, I noticed that fiddling with the sensortip (under the tape) by pressing it even harder or tapping on that tape, it triggered the error of stopping or shutting down the player. This was all possible because the lid was fully open while the tape was playing.

How did I fix it?

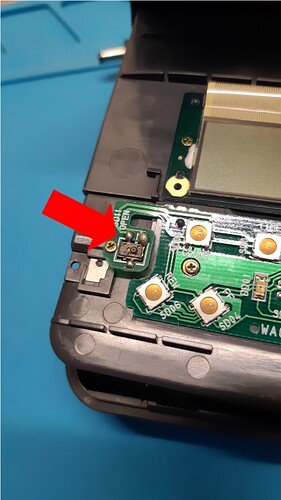

I first dismantling the lid completely, until I had the circuit board with the panelswitches and the LCD screen laying loose. Then I soldered a wire between the 2 pins of the sensor on the circuit board, effectively overruling the sensor. It is the same as what the tape did but then permanently and without the interference that the moving tip caused.
I tested and the problem was completely gone. Could not reproduce it.

Then I decided that that was not an elegant solution, because now the player is tricked into thinking that there is always a tape inserted and that could potentially give problems like opening the lid while playing and tape jam etc. Did not want that. You don’t want to go that route. It is there for a (security) reason.

So I tried a different approach: to clean the sensor (which is basically just a switch). It clearly was a faulty switch that gave wrong signals when it was pressed or released and anything in between. It resembles the problem of crackly pots or faders in analog equipment. It just gives strange effects in electric circuits.

The solution for that is 60-WL-61. What does that mean:

  1. clean it with Kontakt 60 (contactspray). This is aggressive stuff, so you do not want to leave it there. It solves corrosion and restores metal contact.
  2. rinse it with Kontakt WL. Flush it well with this and let it dry.
  3. use Kontakt 61. This will give it a protective layer to prevent future corrosion and wear.
    This is all best done while the board is still dismantled, to give proper access to the switch which is basically open at the back.

After treating the lid sensor like this, the problem was gone and could not be reproduced. So now I have a happy player that can go back to its rightful owner again!

For a little more information about the cleaning process see here: https://www.reeltoreel.nl/wiki/index.php/Cleaning_contacts_-_contact_spray

2 Likes

Awesome. Thanks for sharing.

2 Likes

I have just treated a second 170 (from the same customer, same problem) in this way with same result.

2 Likes


for clarification

3 Likes

Hi @pvdm

Just had a faulty switch and cleaned it by putting it in the ultrasonic machine filled with ipa. Came out clean and working.

Could be a topic for another video in the future.

Just finished the video about the felt pad.

Ralf

1 Like

Looking forward to it, hope to fix a lot of cassettes… :smile:

1 Like
