Broken solder pad on hold switch (DCC 175)

Recorders, Players, etc.
1

I have a second-hand DCC 175 where the “hold” switch is broken. Unfortunately, this player has already been serviced before, but with some combined effort I think I can get it working again.

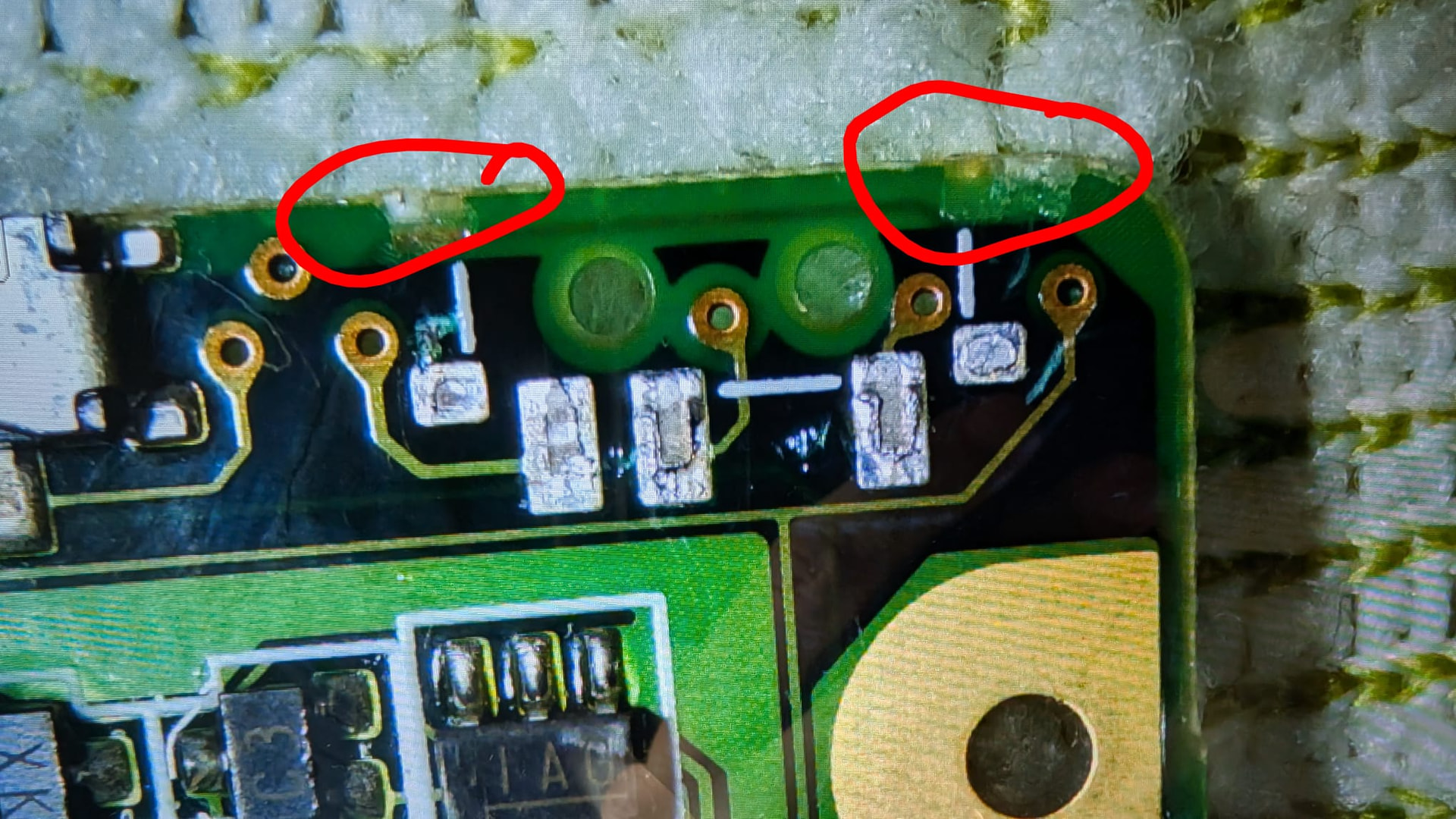

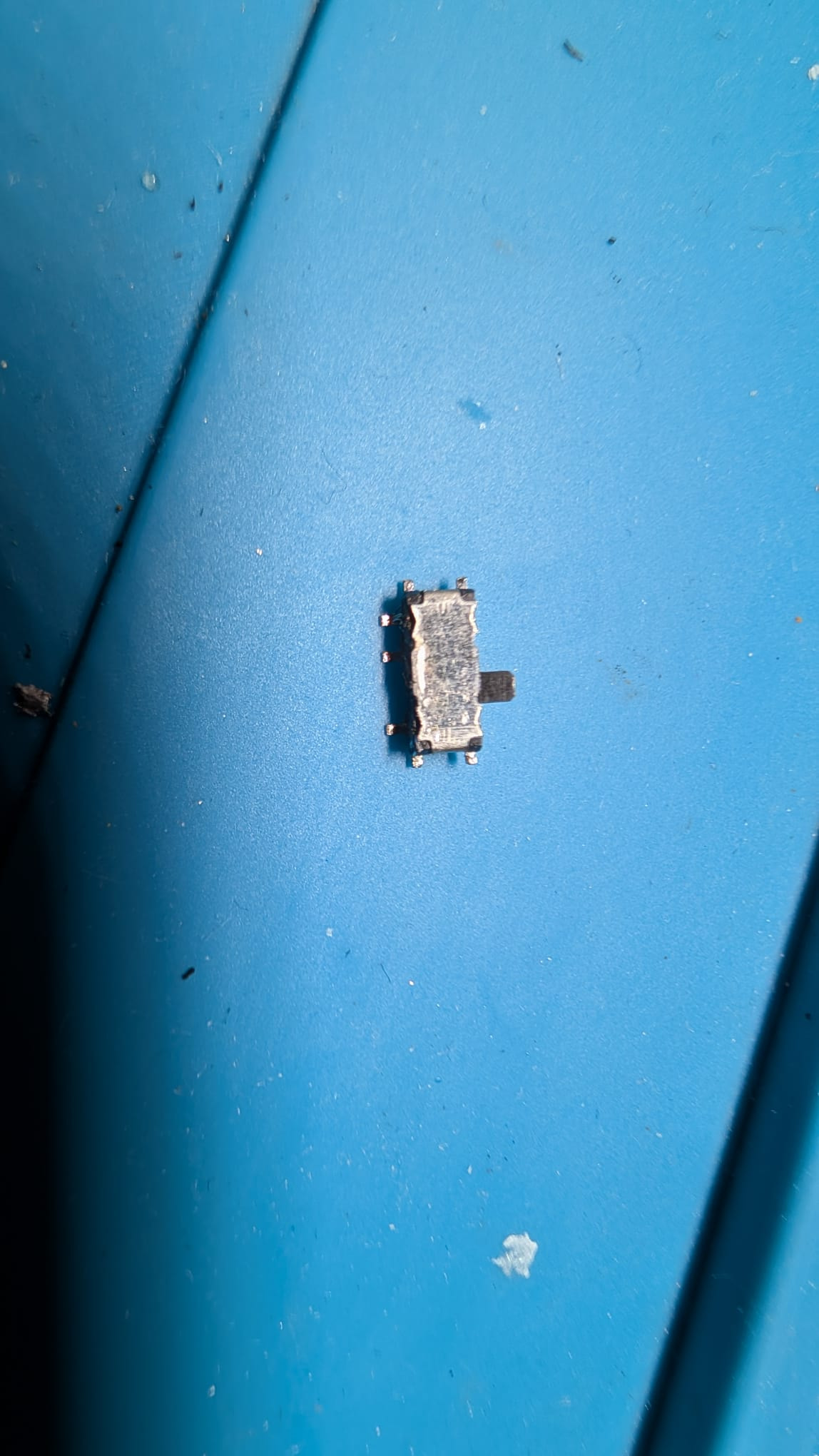

I was able to use a hold switch from a donor player, but on the board where I need to install it, the two top pads have come loose from the PCB.

Am I correct in understanding that these are not essential for the operation of the switch, since only the bottom three connections are actually connected to PCB traces?

I hope someone can help before I attempt to repair this using only the three remaining proper solder points.

Thanks in advance for thinking along with me.

image1920×1080 551 KB

image1148×2040 272 KB

image252×164 44 KB

2

Yes, only the bottom 3 seem connected.

Double check the SM on our website.

3

Thank you for your reply Ralf. The last picture is from the service manual.

1 Like
4

I managed to solder the switch and indeed everything works fine. Thanks again. :slight_smile:
