3D printed DCC 130 and 170/175 stands for display

Philip_de_Lang · May 4, 2020, 3:59pm

After my first try with 3d-modelling (170 batterycase), I made my second and third model using tinkercad.

This time I worked on stands for the 130 and 170/175 (and others with the same dimensions) , so you can display the devices properly.

130 stand: https://www.thingiverse.com/thing:4336407
170 stand: https://www.thingiverse.com/thing:4336409

drdcc · May 4, 2020, 4:50pm

Hi,
The links are not working for me.
Ralf

Philip_de_Lang · May 6, 2020, 12:59pm

I created three versions for each stand: one with text, one without text and one with DCC museum logo. The logo has small fonts, not everything may be readable after printing.

Links are working here. Perhaps it takes some time before they are working. Thingiverse can be slow.

drdcc · May 6, 2020, 2:17pm

Hi,
The files work now. I absolutely love the stands.

Thanks for the logo and details…

I will ask @Harrie to check them out.

Ralf

drdcc · May 8, 2020, 10:40pm

Hi @Philip_de_Lang
These are amazing.
We have tested a few samples and the potential is really nice for the dccmuseum and maybe even for fans who want to display them. A couple of questions:

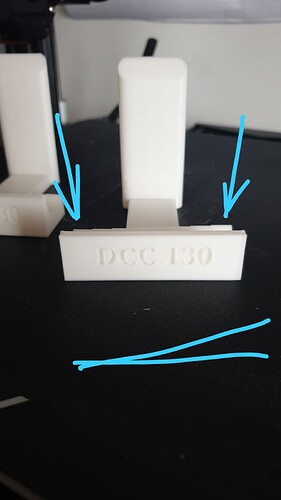

The back (picture with arrow) is tilted. It will cause a 130, RQDP7 or ZD1 to not sit straight. Is this by design or a possible error. The back is not straight.
The logo was printed in two different ways. The stand via a normal 3D but the highly detailed badge (we painted and glued on), was printed using UV. Is it possible to create samples for every player with a name?

The names on the front should be:
Maybe it is even possible to Mention the brand name smaller on top? like Philips on the first line in smaller font and DCC 180 under it (If it looks nice, just asking)

Proto:

Philips DCC 180
Philips DCC 190

For the First Generation Players:
Philips DCC 130
Panasonic RQ-DP7
Victor ZD-1

For the Third Generation Players (there is no second gen).
Philips DCC 134
Philips DCC 170
Philips DCC 175
Panasonic RQ-DR9
Marantz PMD 601

Philip_de_Lang · May 10, 2020, 4:31pm

Pics look great! The tilting is not by design, it is by accident Do not know how this happened. I have redesigned the 170 stand, the device now fits like a glove. I will look into the texts, already tried a large Philips logo on the new 170 stand, and that looks really smart. I will now focus on making the 130 stand nicer.

Philip_de_Lang · May 11, 2020, 8:26am

Both models have been reworked and uploaded. I will add the texts later, have to work now

drdcc · May 11, 2020, 7:21pm

They look great.

Ralf

Philip_de_Lang · May 14, 2020, 2:02pm

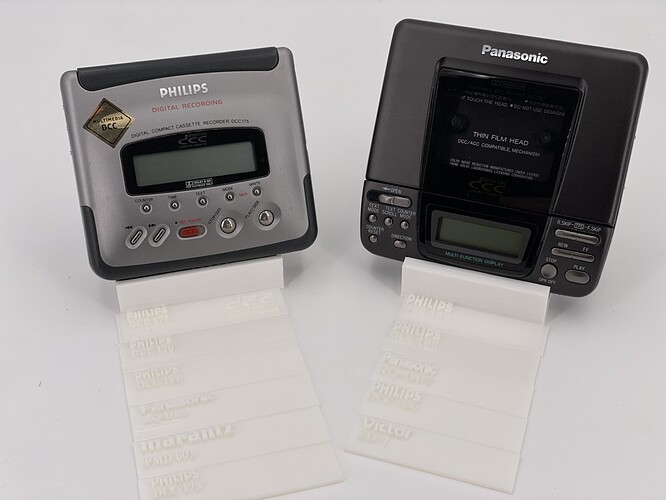

I have now made versions for all types with names debossed. I have made one example with DCCmuseum logo debossed too. Let me know you want me to do the rest too.

drdcc · May 14, 2020, 4:08pm

Hi @Philip_de_Lang These look great. I will try and get them printed again here.
We used a regular 3d printer, but the fronts are done with UV, providing even better detail.

I will let you know.
Ralf

T_Drogt · May 26, 2020, 7:58pm

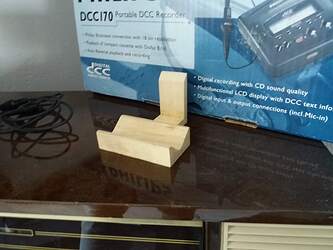

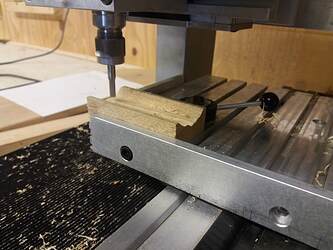

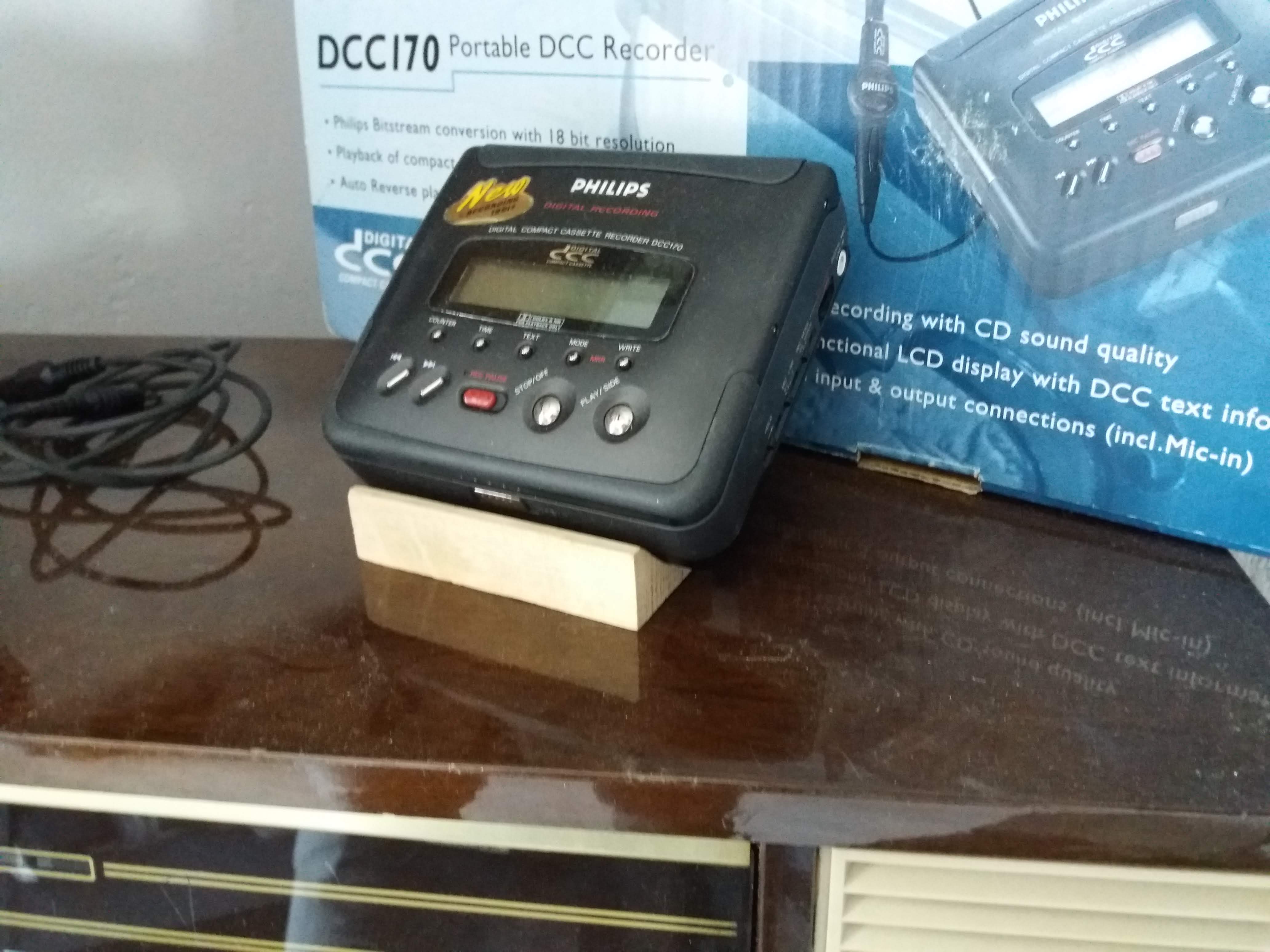

I might not have a 3D printer, but i do have a CNC router at my disposal. Now i can confirm the model also works in wood

Philip_de_Lang · May 28, 2020, 4:40pm

Nice to know that this works too

drdcc · June 14, 2020, 11:02pm

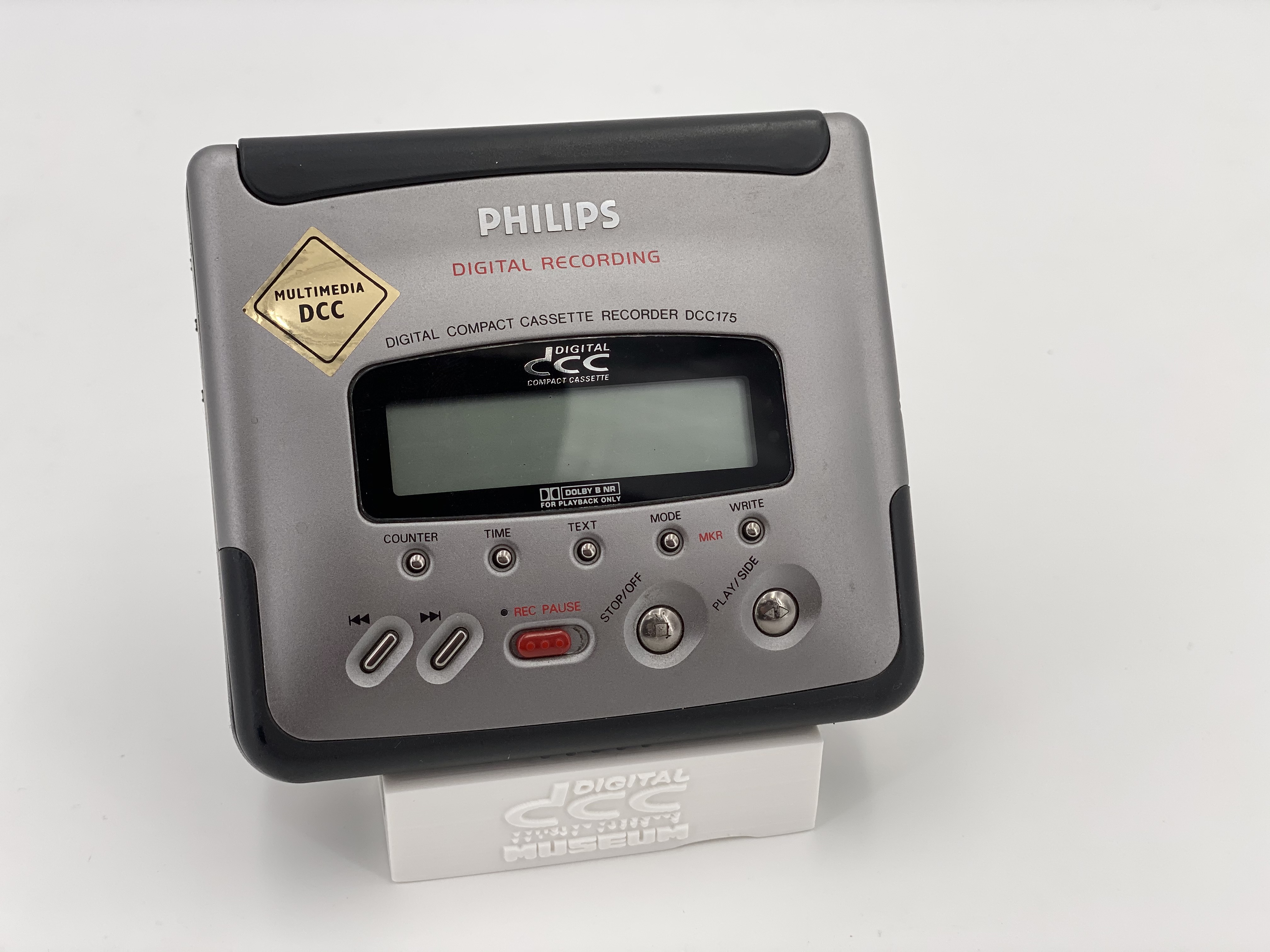

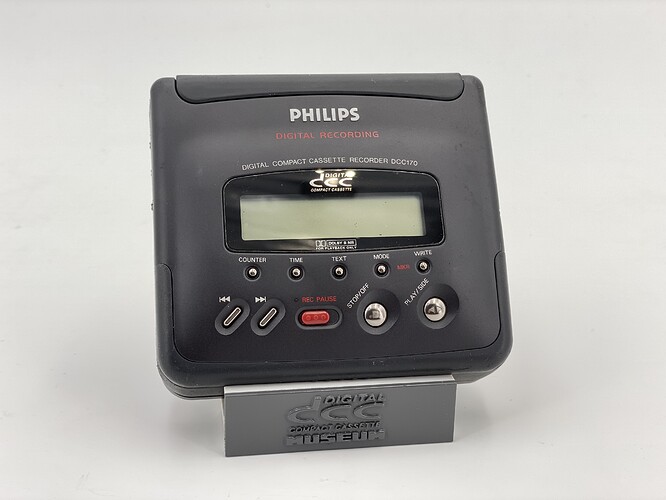

The new stands locally printed in Redondo Beach,
We had the sign separated and extruded the logo/lettering.
Came out really nice. We will spray paint the logo later.

Remi · January 1, 2021, 11:28pm

Hi there, it seems that one file is missing on thingyverse? The (nicest) one with the DCC logo in the middle
